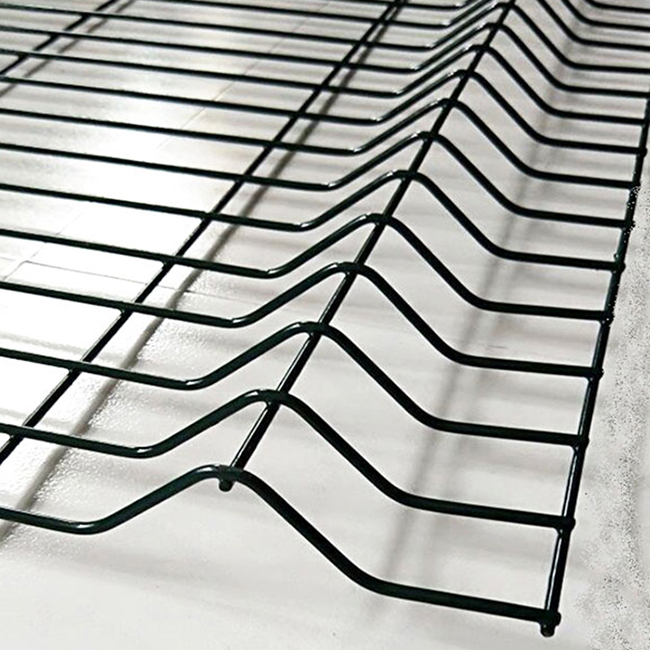

The hook-shaped 3d Cury Fence is the peach-shaped triangular bending fence that we often see. It has the characteristics of convenient installation, beautiful and practical. Today I will briefly introduce how he installed it.
The installation of hook-type 3d Cury Fence mainly includes six major steps: measurement of pay-off, original ground treatment, along-slope and excavation of foundation pits, temporary positioning of columns, installation of fence meshes, pouring of column concrete foundation, and overall tightness of fences Firm and adjust.
1. Measure and pay-off: According to the design requirements of the drawings and the actual topography, the pay-off is carried out, and the center line of the column is determined.
2. The original ground treatment is an important prerequisite to ensure that the installation of the protective fence is smooth and overall firm. The weak layer under the foundation must be replaced and compacted before the column can be buried to ensure the firmness of the column. The column installation is carried out in sections. From the longitudinal direction, the axis of the column should be on a straight line, and there should be no unevenness; from the height, the column top is smooth, and there should be no unevenness, except for special terrain.
3. Make marks according to the line placed, according to the center distance, fill and excavate and slope down the original surface to ensure the size of the foundation pit.
4. During the installation of the peach-shaped column, the column must be stable and tightly connected to the foundation. During the column installation process, the straightness of the column installation should be adjusted with a horizontal ruler to ensure that the straight section is straight and the curved section is smooth.
5. The installation of the 3d Cury Fence should be progressive. A post is pre-buried and the mesh is hung. The mesh must be firmly connected to the post and tensioned. The mesh should be installed flat without obvious warpage and unevenness. , And then install another post to extend, and install it in sequence.
6. After the temporary positioning and installation of the peach-shaped column, backfill with concrete to fix it.
7. The hook-type 3d Cury Fence can also be used with a column with a chassis. The device only needs to lay expansion bolts, which is very convenient.
